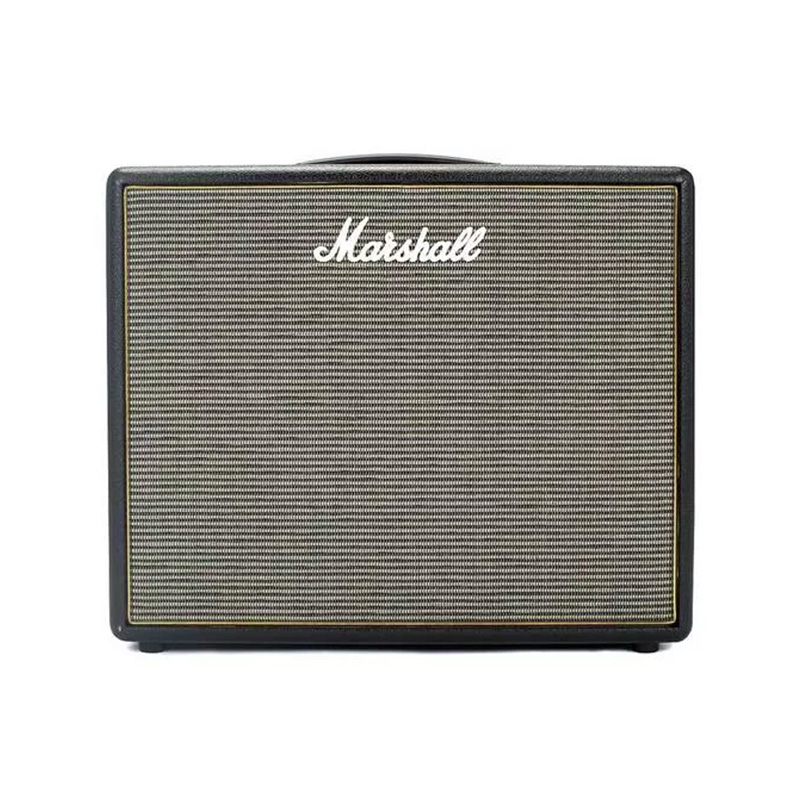

This 20W combo is designed for those that like expression through innovation. Using a Celestion V type speaker the Origin20CTM provides a classic all-valve Marshall tone. A 2-way footswitch allows you to control the gain boost and turn the FX loop on and off. With classic styling and modern features this amp generates rich, harmonic tones so that you can craft a sound to suit your personality.
TECHNICAL SPECIFICATION
GENERAL
Model
Origin20C
Range
Origin
Technology
Valve
Channels
1
ELECTRONICS
Output wattage
High power 20W, mid power approx 3W and low power approx 0.5W
Outputs
Speaker outputs: 3 x 1/4″ jack sockets (16Ω load / 8Ω load), DI out (1/4″ jack)
Inputs
1 x 1/4″ jack instrument input, footswitch
Controls
Gain, boost, tilt, bass, middle, treble, master, presence, powerstem
Effects
None
Effects loop
Yes, Series, Send/Return
SPEAKERS
Speaker configuration
1×10″
Speaker model
Celestion V type (16Ω, 50W)
Unit impedance
16Ω
VALVES
Preamp valves
3 x ECC83
Power amp valves
2 x EL34
ACCESSORIES
Footswitch
PEDL-90016 included
Cable
Detachable power cable included
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight
13.9 kg / 31 lbs
Width
520 mm / 20.5″
Height
440 mm / 17.3″
Depth
240 mm / 9.4″
