Descrizione

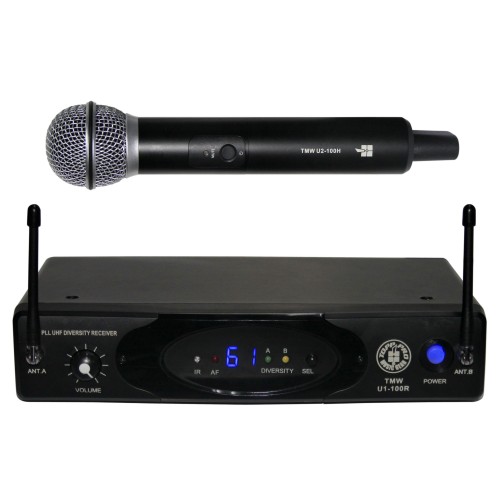

Radiomicrofono professionale PLL UHF – Manuale
- Banda di Frequenza UHF 863 – 865 mHz
- PLL Diversity Synthesized System
- Fino a 8 ore di utilizzo con 2 pileAA

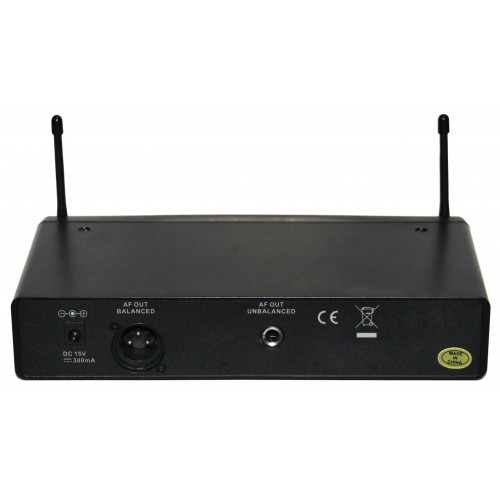

- Uscita Bilanciata o Sbilanciata
- Canali Preimpostati per una facile gestione
- Fino a 4 Sistemi utilizzabili contemporaneamente
| Channel | Single Channel, up to 99 frequency presets far each frequency bands |
| Receiver Type | PLL UHF SYNTHESIZED |
| Frequency Band | UHF |
| Frequency Response | 50Hz – 15Khz (±3d8) |
| Frequency stability | ±0.005% |
| Modulation Mode | FM (F3E) |
| T.H.D. | <1% |
| Dynamic | >100dB |
| Max Unbalanced Output | 10d8u |
| Max Balanced Output | Max Balanced Output OdBu |
| SIN Ratio | > 100dB |
| RF Sensitivity | -100dBm/30mA |
| Power Supply | DC 15V / 30mA |
| Dimensions | 220 (W) x 45 (H) x 125 (L) mm |
| Weight | 0.56kg (Approx.) |

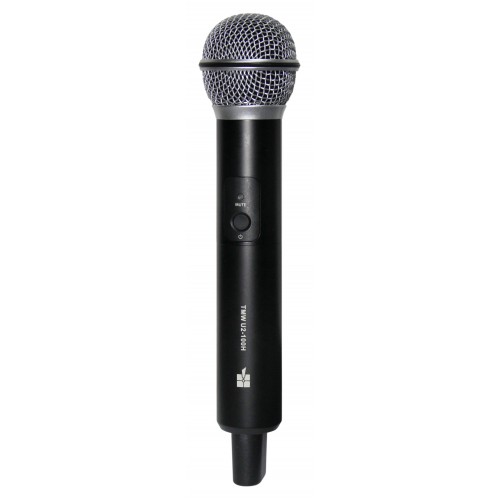

| Model | U1-100T (Transmitter) |
| Tx Type | Handheld |
| Carrier Frequency Band | UHF |
| Oscillation Mode | PLL UHF SYNTHESIZED |
| Modulaion Mode | FM (F3E) |
| Frequency stability | ±0.005% |
| RF Radiation (FCC) | 10mW |
| Spurious Emissions | 45dBm |
| T.H.D. | <1% |
| Frequency Response | 50Hz – 15Khz (±3dB) |
| Current Drain | <150mA |
| Battery | “AA” x 2 |
| Operation Temperature | -10°C to 50°C |
| Tone Frequency | 35KHz |
| Dynamic | >100dB |
| Mic / lnstrument Input | 10dBu |
| Microphone Capsule | Dynamic |
| 4 Band Choice | |
| Dimensions | 240 x 50mm |
| Weight | 0.270kg |
